Reactor System, 50L Squatty, C

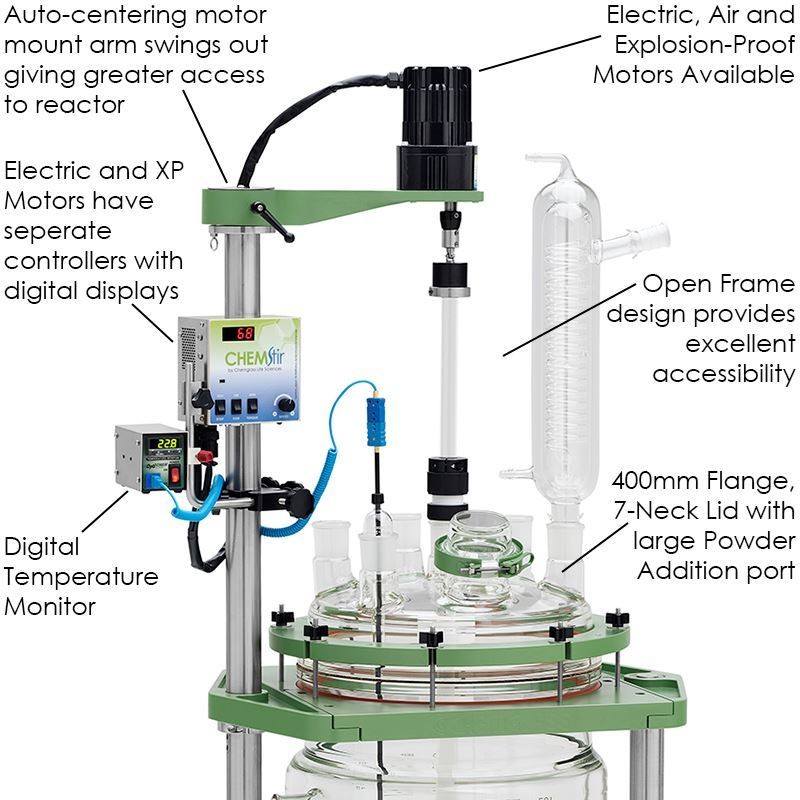

50L Squatty, Low Profile, glass reactor system with 400mm flange, on our innovative Kwik Mount support frame.

Complete 50L Squatty Reactor System Features:
• More Clearance: 50L Squatty Glass Reactor System with 400mm Flange Maximizes Clearance Under The Drain Valve

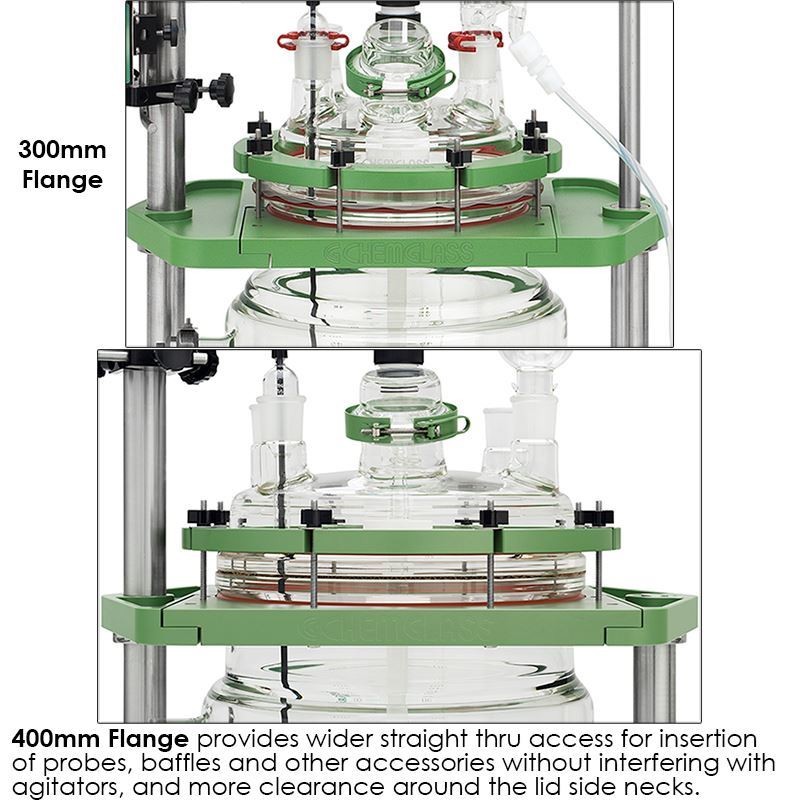

• Wider Access: 400mm ID Flange Provides Wider Access For Insertion or Probes, Baffles and Other Accessories without Interfering with Agitators • Heavy Duty 2" Diameter Solid Stainless Steel Uprights and Heavy Duty PTFE Coated Aluminum Fittings Provide Maximum Strength and Chemical Durability  • Digital Temperature Monitor
• Heavy Duty Chemically Resistant Frame: Universal Motor Mount for Electric, Air, or XP Motors: Design Provides Greater Accessibility
• Electric Motor and Controller: Electric and XP Motor has Separate Controller with Digital Display • Reactor Jacket Graduation Scale on Both Sides
• Large Detachable Drain: 3" Beaded Pipe Zero Dead Space Detachable Drain Valve has Knob With Laser Etched Directional Arrows for Open and Close
• 7-Neck 400mm Inside Diameter Lid with Large 80mm Powder Addition Port

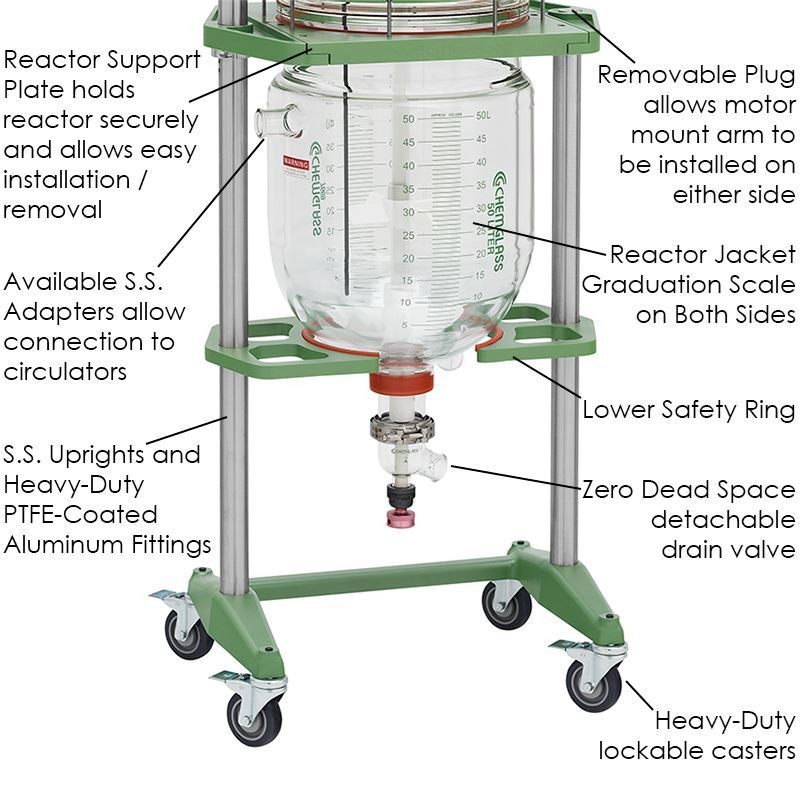

• Reactor Support Plate Holds Reactor Securely and Allows Easy Installation/Removal

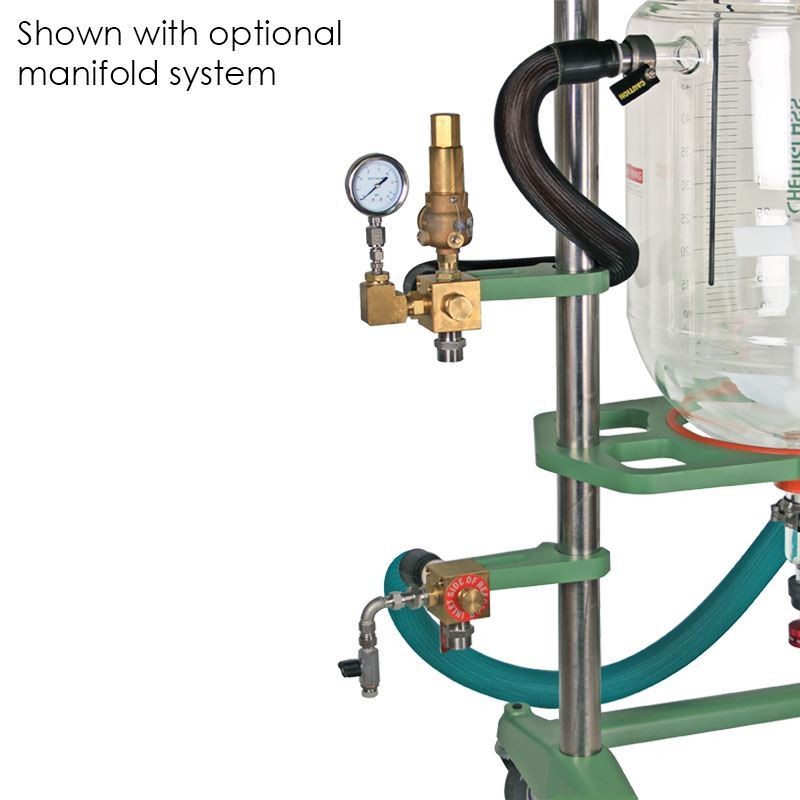

• Pressure Relief Manifold System: Optional CG-1969-M High Flow Pressure Relief Manifold System with Insulated Hoses and Bulkhead Fittings
• Mobile: Large Swivel Casters with Locking Mechanisms
